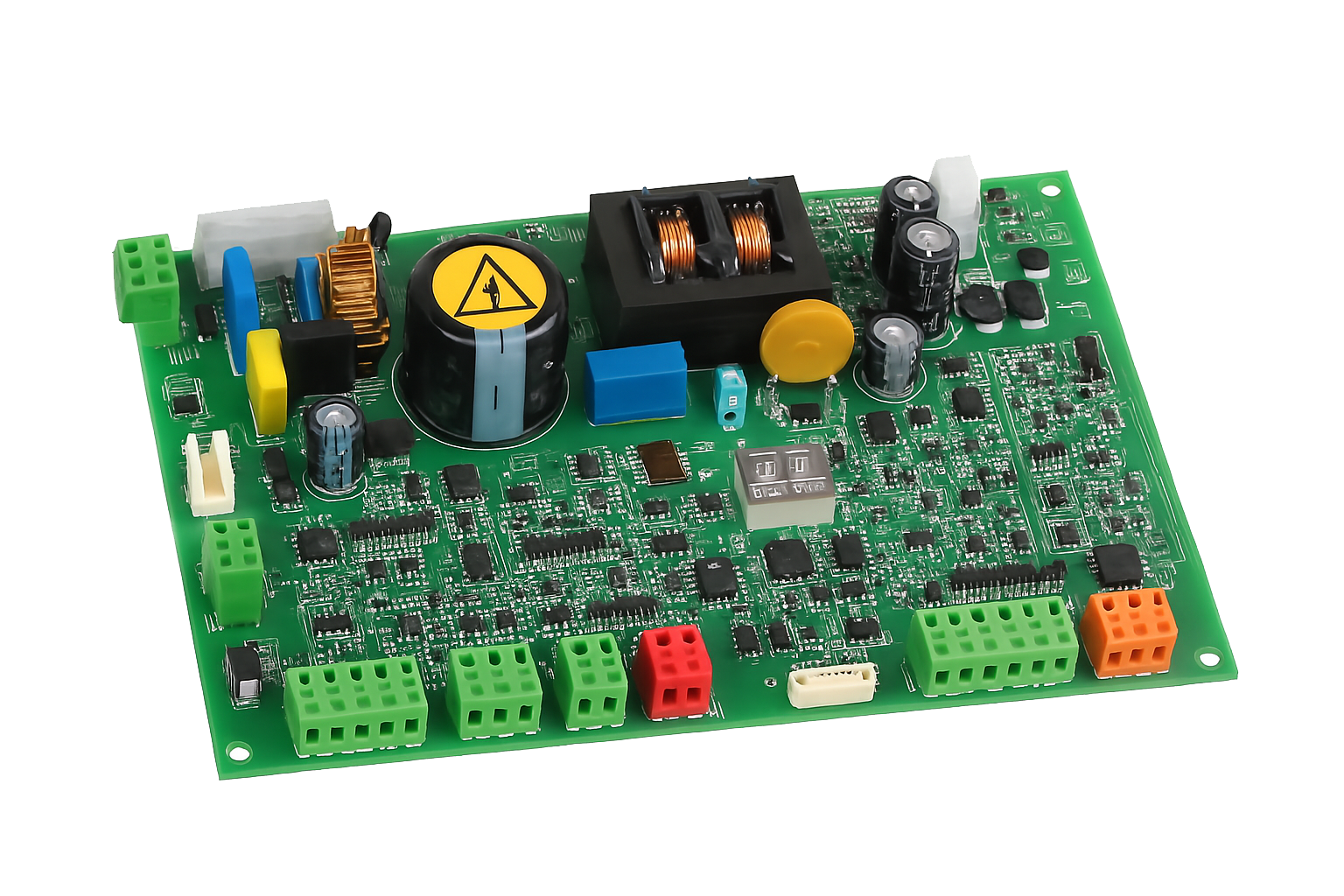

Control Board B614
FAAC Control Board B614 is the dedicated electronic brain of the FAAC B614 automatic barrier system, acting as an automatic barrier system controller for light‑commercial and residential parking gate installations. This control board manages the 24 V DC motor, accessory outputs, safety functions, and operating modes, enabling smooth and programmable barrier movement with opening times under 2 seconds on standard beam lengths. The board integrates advanced features such as power‑supply switching, BUS 2Easy for simple two‑wire accessory cabling, and OMNIDEC for universal radio receiver modules, allowing easy integration of remote controls, photocells, loop detectors, and flashing lights.
Housed inside the B614 barrier cabinet with IP55‑rated protection, the FAAC Control Board B614 offers a user‑friendly LED display and push‑button programming for configuring logics, pause times, speeds, work cycles, and warning‑light behavior. It supports multiple operating logics and outputs for traffic‑light heads, beam‑mounted LED strips, failsafe signals, and battery‑backup operation, making it a versatile automatic barrier system controller for a wide range of access‑control projects. Designed for continuous‑use environments, the B614 control board provides reliable, safe, and highly configurable performance for parking barriers up to 6 meters in clear opening.
Original price was: AED 2,082.00.AED 1,873.80Current price is: AED 1,873.80.
Product Details
Key Features:
- Advanced Technology: Control Board B614 Equipped with power supply switching, display programming, BUS 2easy technology, and OMNIDEC.
- Compatibility: Compatible with XF433/XF868 quick insert module for versatile use.
- Programmable Functions: Offers a wide range of programmable functions for customization.
- LED Display and Buttons: User-friendly programming with LED display and control buttons.
Technical Specifications:
- Power Supply Voltage: 220-240V~ 50/60 Hz
- Motor Max Power: 150W
- Max Accessories Load: 500 mA
- Accessories Power Supply: 24V
- Programming: LED display and buttons for easy configuration
- Operating Logic: EP – A – AP – B – BC – C – P
- Programmable Functions: Logic, Pause time, Opening/Closing power, Opening/Closing speed, Work time, Cycle counter for service, service request, warning light output, Failsafe output, Status output, Beam LED lighting output, traffic light head output, battery operation, pre-flashing time, Stop, exits delay, Primary-Secondary
- Work Time and Pause Time: Programmable (from 0 to 9.5 min)
- Thrust Power: Programmable on 50 levels
- Speed Adjustment: Programmable on 10 levels
- Terminal Board Inputs: Loop1*, Loop2*, Open, Close, Stop, Emergency, Battery, BUS 2easy, Power supply
- Terminal Board Outputs: 24V Flashing-lamp, Motor, Accessories supply 24V, 4 programmable outputs
- Rapid Connector: XF433/868 Module for OmniDEC decoding, USB, Traffic light indicator head, Beam LED lighting
- Protection Fuses: 1 (2.5A) + self-resetting fuses
- Operating Ambient Temperature: -20°C to +55°C
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 35 × 28 × 15 cm |
| Brand | FAAC |
